LNG Skid

LNG Skid Station

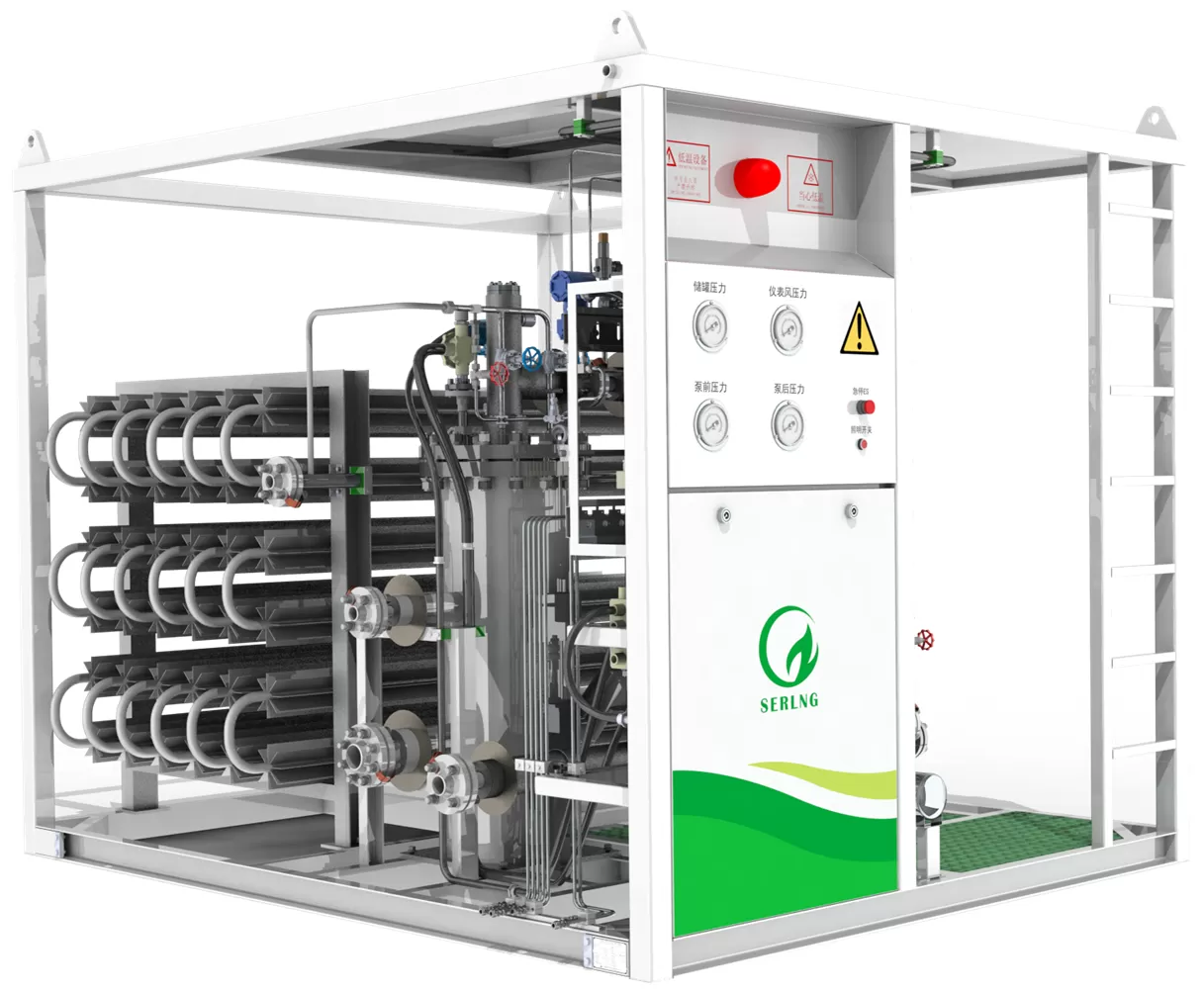

The company's self-developed SL-DQ LNG Skid is a highly integrated solution that incorporates a high-performance LNG Dispenser, along with cryogenic submersible pumps, pipelines, instruments, valves, and vaporizers, all mounted on a single skid. Key components, including the main pipeline, pump sump, and valves, are constructed from stainless steel vacuum-jacketed tubing for optimal performance. This all-in-one unit delivers multiple functions such as filling, unloading, and saturation adjustment.

Key features of the SL-DQ LNG Skid include:

• High integration, resulting in a compact footprint, minimal on-site installation requirements, and rapid commissioning;

• Skid-mounted design for easy transportation, relocation, and enhanced mobility;

• Explosion-proof electrical instrumentation system, ensuring operational safety and reliability;

• Compact process piping layout, which reduces pre-cooling time and enables fast filling speeds.

Technical Specifications

Functions & Applications

Key Functions:

• Filling & Unloading: Efficiently transfer LNG between storage tanks and transport vehicles (like tanker trucks).

• Saturation Tuning: Maintains the correct pressure and temperature of the LNG storage tank.

• Distribution: Can be configured as a simple skid-mounted station for dispensing LNG to end-users.

Typical Applications:

• Satellite LNG Stations: Ideal for small to medium-scale industrial users not connected to the pipeline grid.

• Vehicle Refueling Stations: Serves as the core unit for LNG refueling stations for trucks and buses.

• Peak-Shaving Plants: Provides backup fuel supply during periods of high demand.

• Industrial Gas Supply: Used as a reliable LNG source for manufacturing processes.

Why Choose Our LNG Skid?

• Faster Deployment: Skid-mounted design means minimal on-site work. Get your station operational in days, not weeks.

• Enhanced Safety: Integrated safety systems and explosion-proof components ensure reliable operation in hazardous environments.

• Reduced Loss: Excellent insulation and compact piping minimize LNG boil-off gas, saving you money.

• Cost-Effective: Lower installation and civil work requirements lead to significant overall cost savings.
